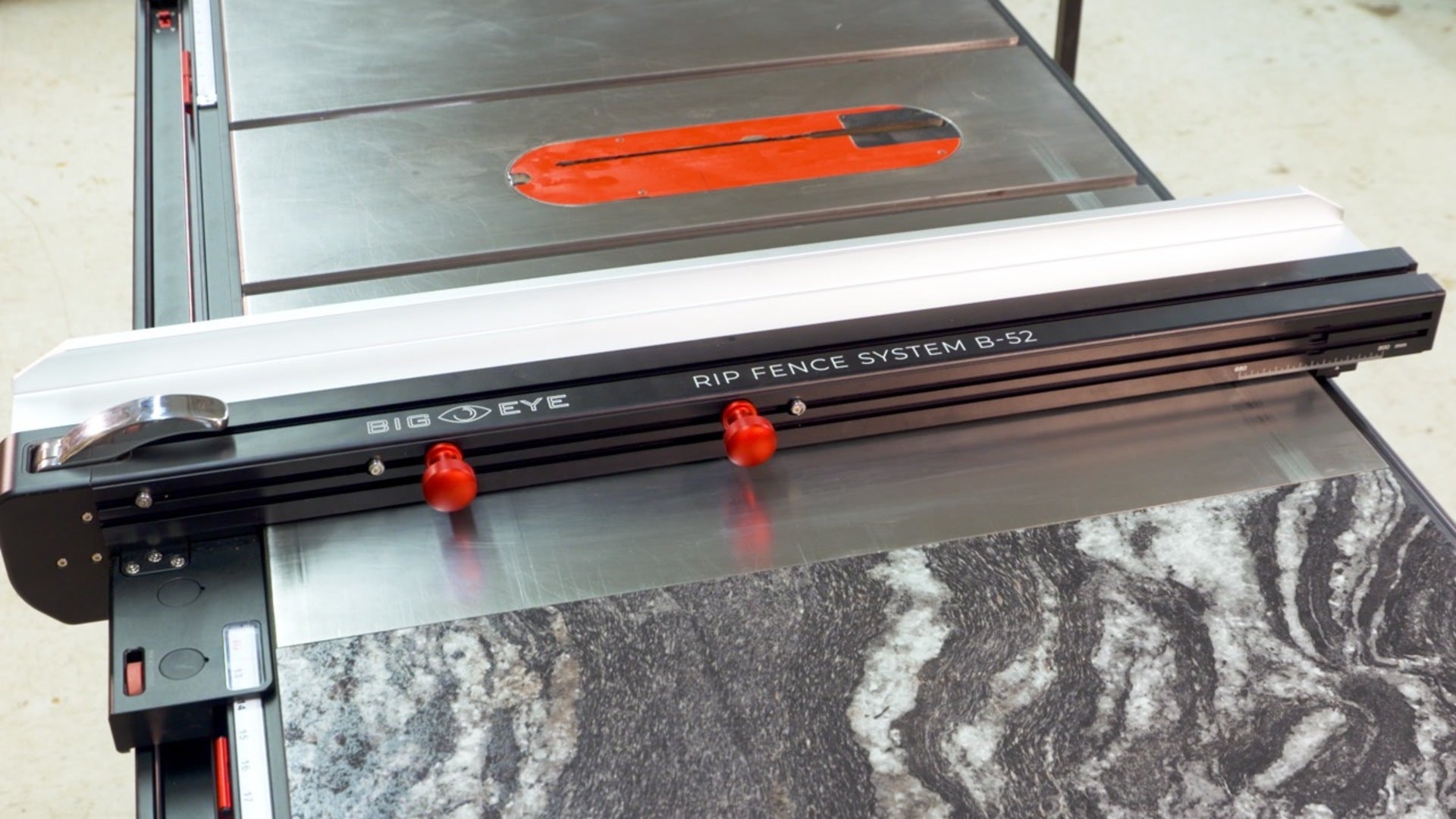

BIG EYE B-52 Rip Fence System fits your 52" (1.320 mm) rail length.

BIG EYE B-52 Rip Fence System fits your 52" (1.320 mm) rail length.

Regular price €1.149,00 EUR
Regular price €1.299,00 EUR Sale price €1.149,00 EUR
Sale Sold out

Enhance your woodworking precision and efficiency with the BIG EYE Rip Fence System, designed to meet the needs of professional and hobbyist woodworkers alike. Buy today and transform your table saw experience!

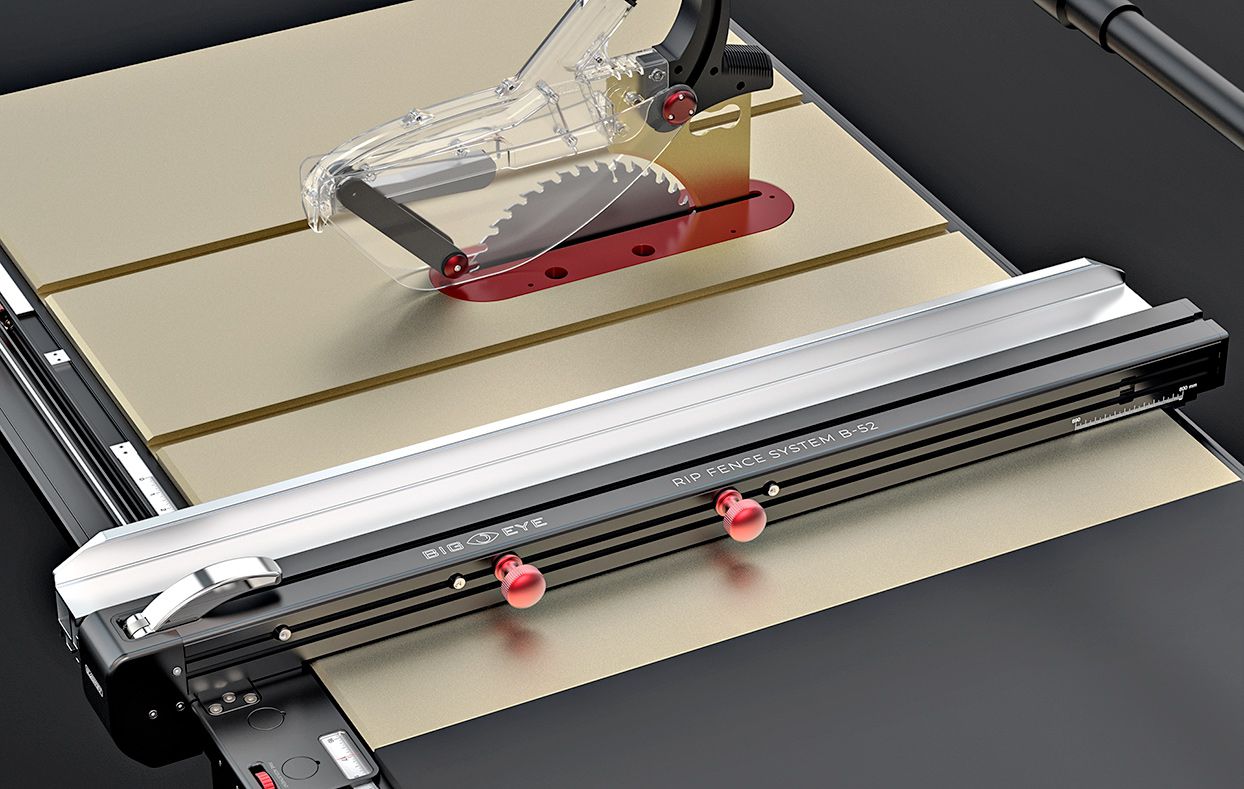

An unprecedented rip-cutting solution for table saws

This high-quality rip fence is essential for a table saw to achieve desirable cutting precision and safety. Traditional "T-square" style designs often fall short in accuracy, repeatability, and ease of operations. Woodworkers typically face challenges with sloppy rail guiding and structural displacement, leading to multiple trial cuts to achieve precision.

The BIG EYE Rip Fence System addresses these issues with innovative features:

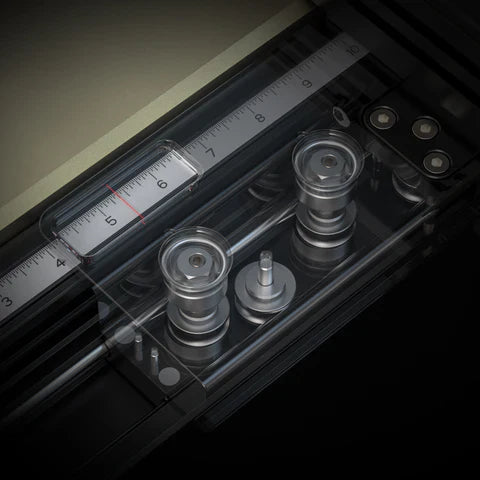

  1. Dual-axis Linear Guide Rail System: Ensures smooth, friction-free movement with eight bearings gliding along hardened steel rods, maintaining exceptional accuracy (0.15mm full length).

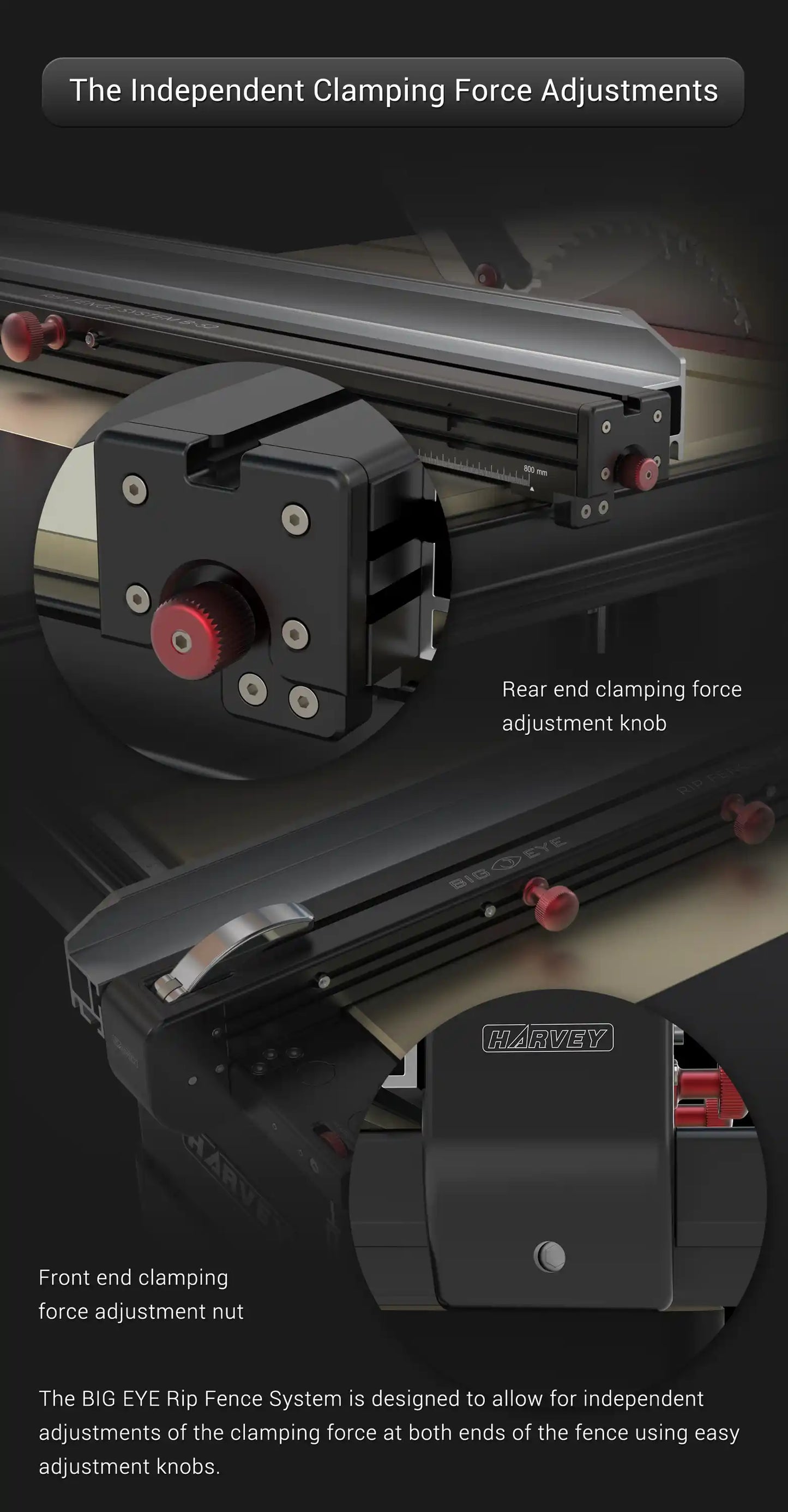

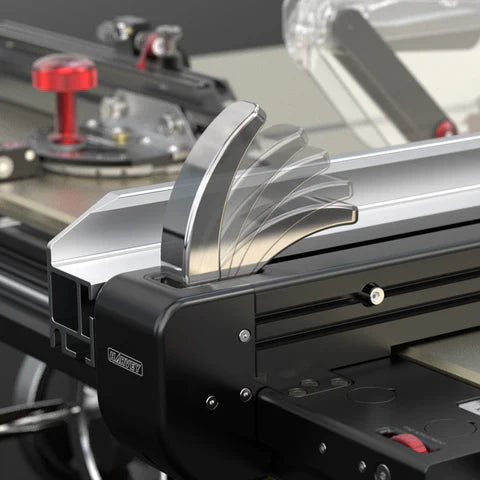

  2. Synchronized Dual-end Fence Locking Mechanism: Allows single-action clamping at both ends, preventing fence drift during cutting and maintaining accuracy within 0.02mm (0.0008").

  3. Durability and Precision: Crafted from anodized aircraft aluminum, hardened steel, and stainless steel, providing excellent corrosion and wear resistance.

  4. Versatile Fence Positions: Adjustable high/low fence plates for different wood thicknesses, and easily switchable positions for enhanced flexibility.

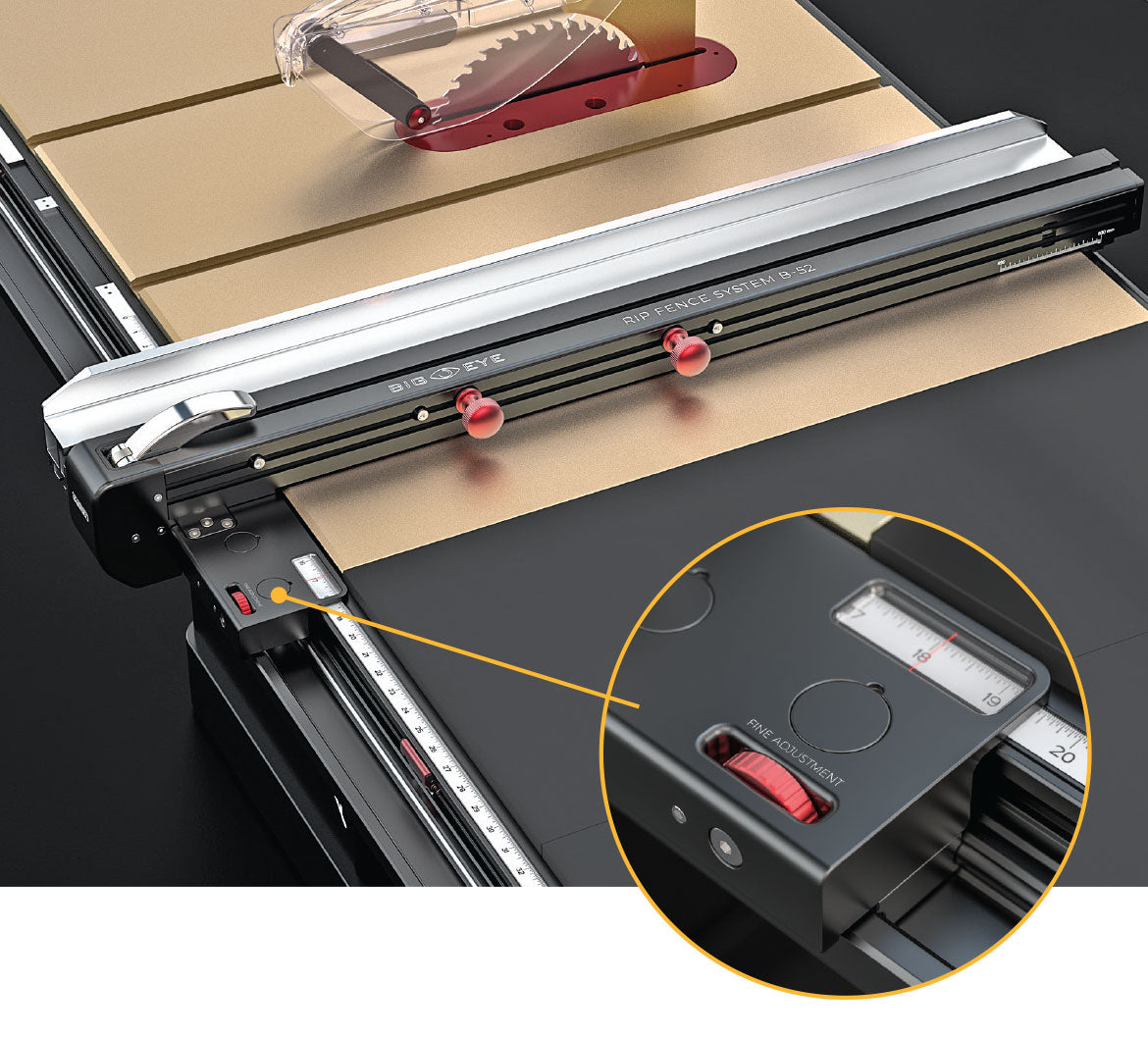

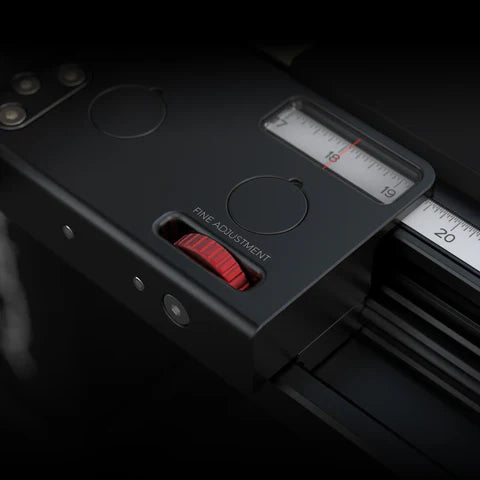

  5. User-friendly Adjustments: Features micro-adjustment knobs and flip stops for precise, repeatable cuts, along with a polished stainless steel handle for intuitive operation.

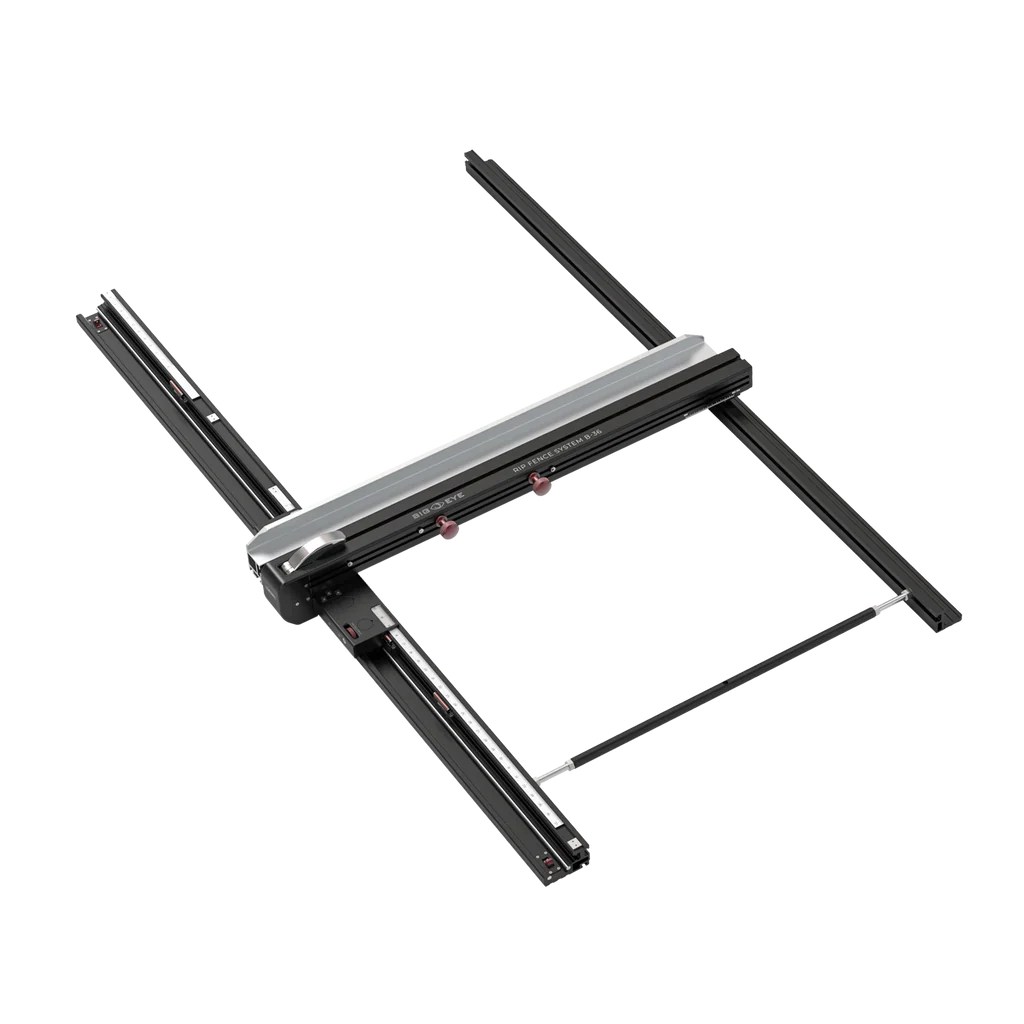

  6. Universal Installation: Slot-style installation fits various table saw models, compatible with brands like SawStop, Powermatic, JET, and more.

Technical Specifications

Specification B-52
Guide Rail Dimension Front: 92 x 2165 mm
Rear: 65.5 x 1855 mm
Package Size Pack 1: 2227 x 178 x 115 mm
Pack 2: 1112 x 430 x 175 mm
Net/Gross Weight 34/36 kg
Max. Cutting Length 1320 mm
Max. Load Capacity 300 N
Number of Rollers 8
Number of Flip Position Stops 4
